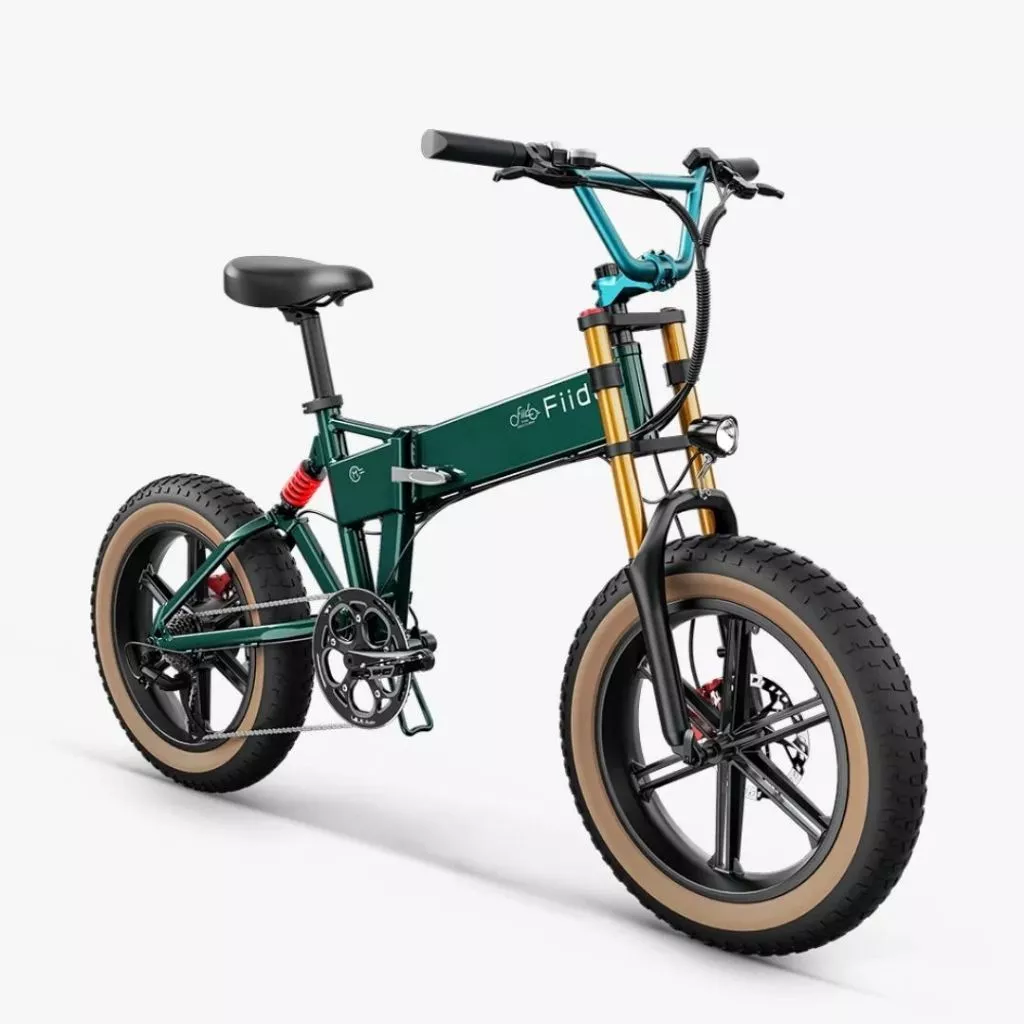

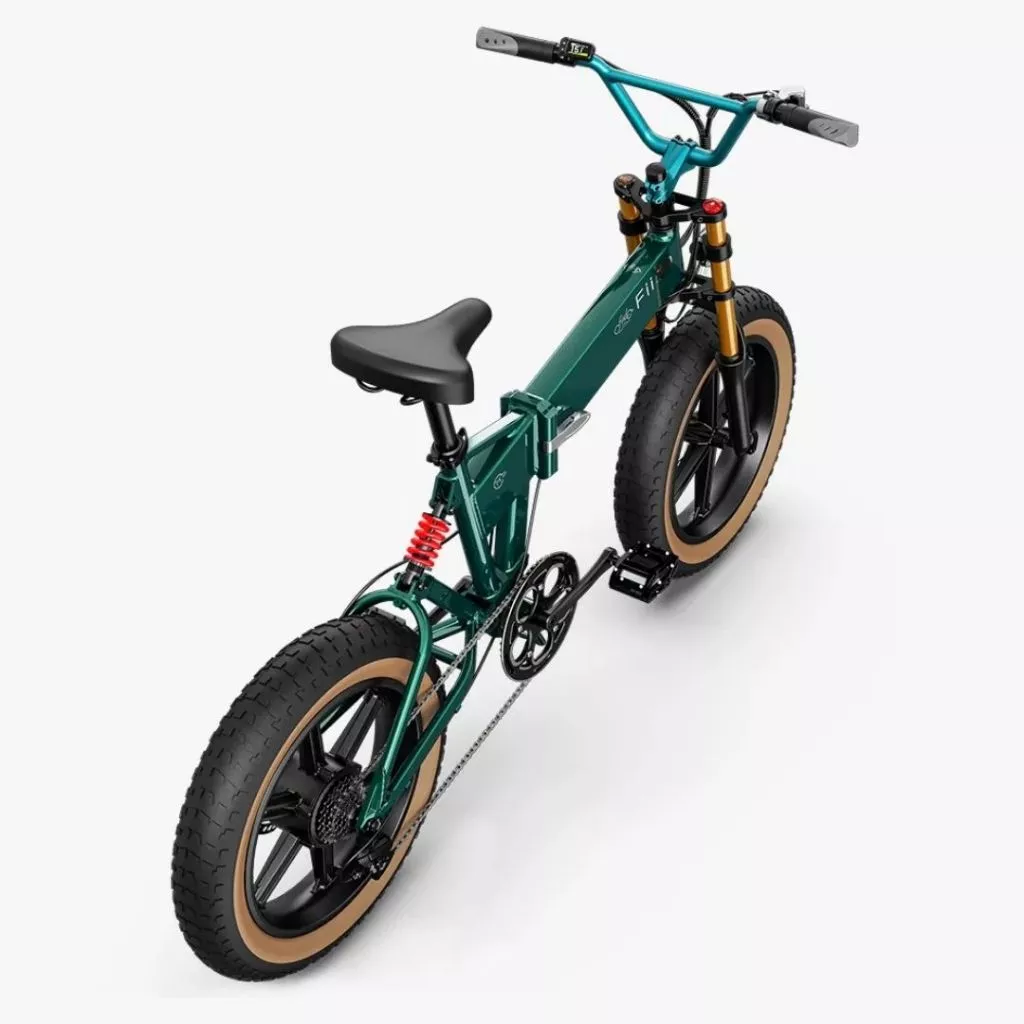

FIIDO M1 PRO 2025 FAT TIRE E-BIKE

Specifications:

Detail

Net weight : 59 lbs (27kg)

Payload : 264 lbs (120kg)

Frameset

Frame : 20-inch aluminum alloy frame

Fork : 2025 Upgrade: Aluminum alloy hydraulic dual-crown front fork (80mm travel, 135mm width)

Old Version: Aluminum alloy hydraulic shock-absorbing front fork (60mm travel, 135mm width)

Headset : Aluminum alloy bearing limit headset

E-system

Drive unit : 500W integrated wheel brushless geared motor

Battery : DMEGC 556.8Wh (2025 version)

DMEGC 614.4Wh (old version)

Charger : 48V2A

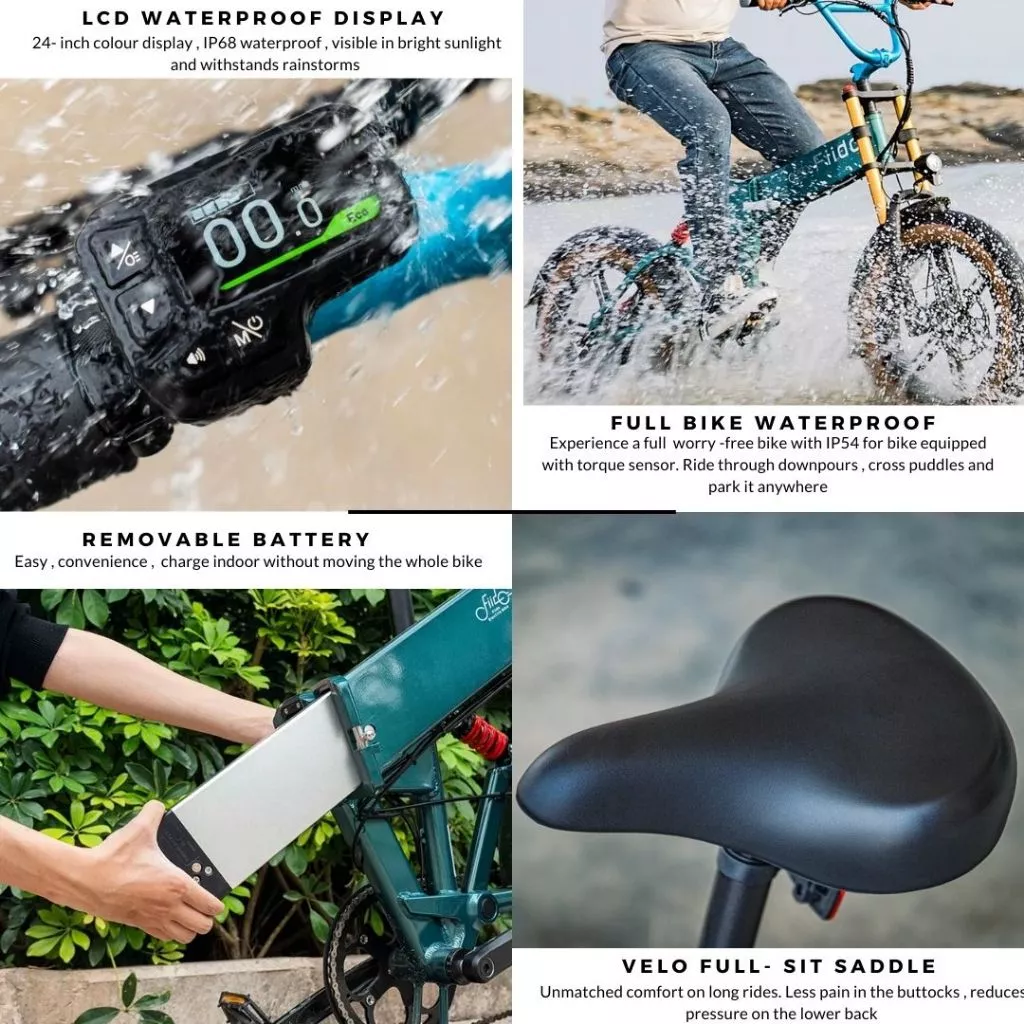

Display : LCD 1.47 inch

Drivetrain

Rear Derailleur : SHIMANO TY300D

Shifters : SHIMANO TX50

Chain : KMC Z7

Crank : Aluminum alloy 52T

Rear Cogs : SHIMANO TZ500 7S (14-28T)

Sensor : 2025 Upgrade: Mivice S200 torque sensor

Old version: 12-magnet cadence sensor

Brakes

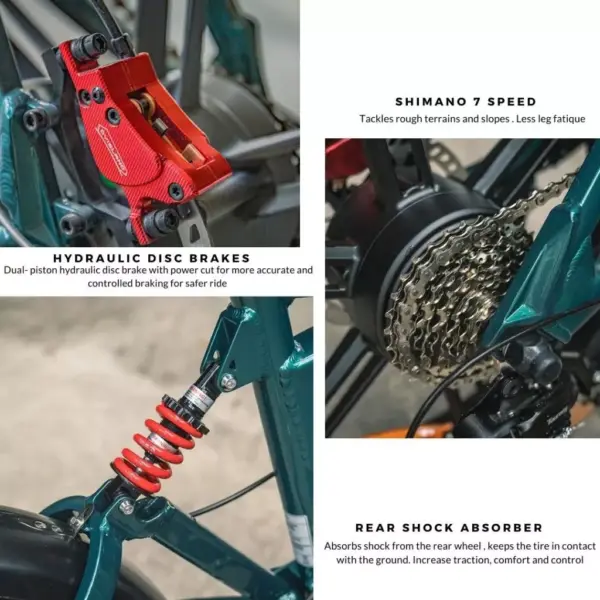

Brakes : Dual-piston hydraulic disc brake with power cut-off

Brake Levers : Aluminum alloy three-finger brake lever

Wheels

Front Hub : Magnesium alloy integrated wheel with dual bearings (detachable axle M10*135*185mm)

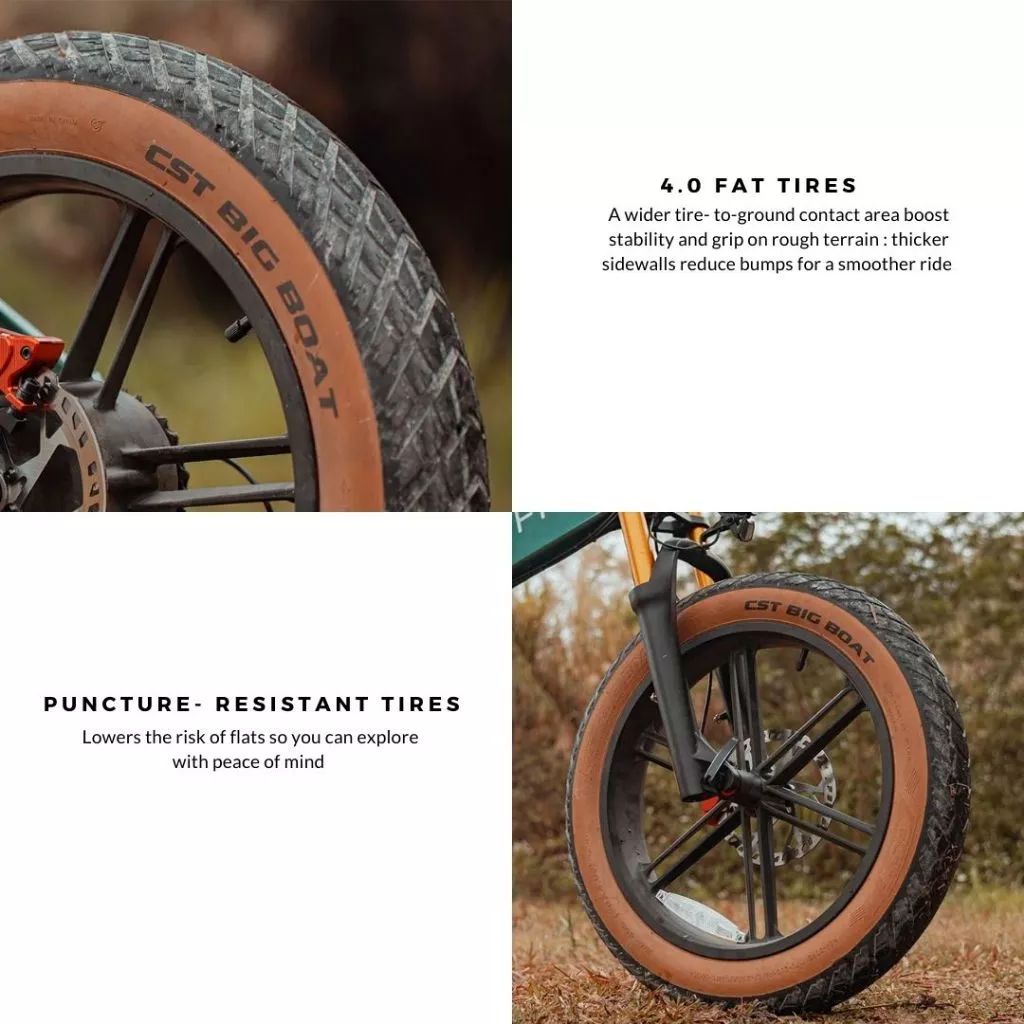

Tires : CST 20*4.0

Components

Handlebar : Aluminum alloy (Length: 560mm Maximum diameter: 25.4mm Minimum diameter: 22.2mm)

Grips : TPR non-slip handle grip (Length: about 130mm)

Saddle : VELO vacuum full-fit saddle

Seatpost : Aluminum alloy clamp head seatpost (Length: 400mm;Diameter: 33.9mm)

*Specifications are subject to change without prior notice.

*Fiido M1 85% assembled
