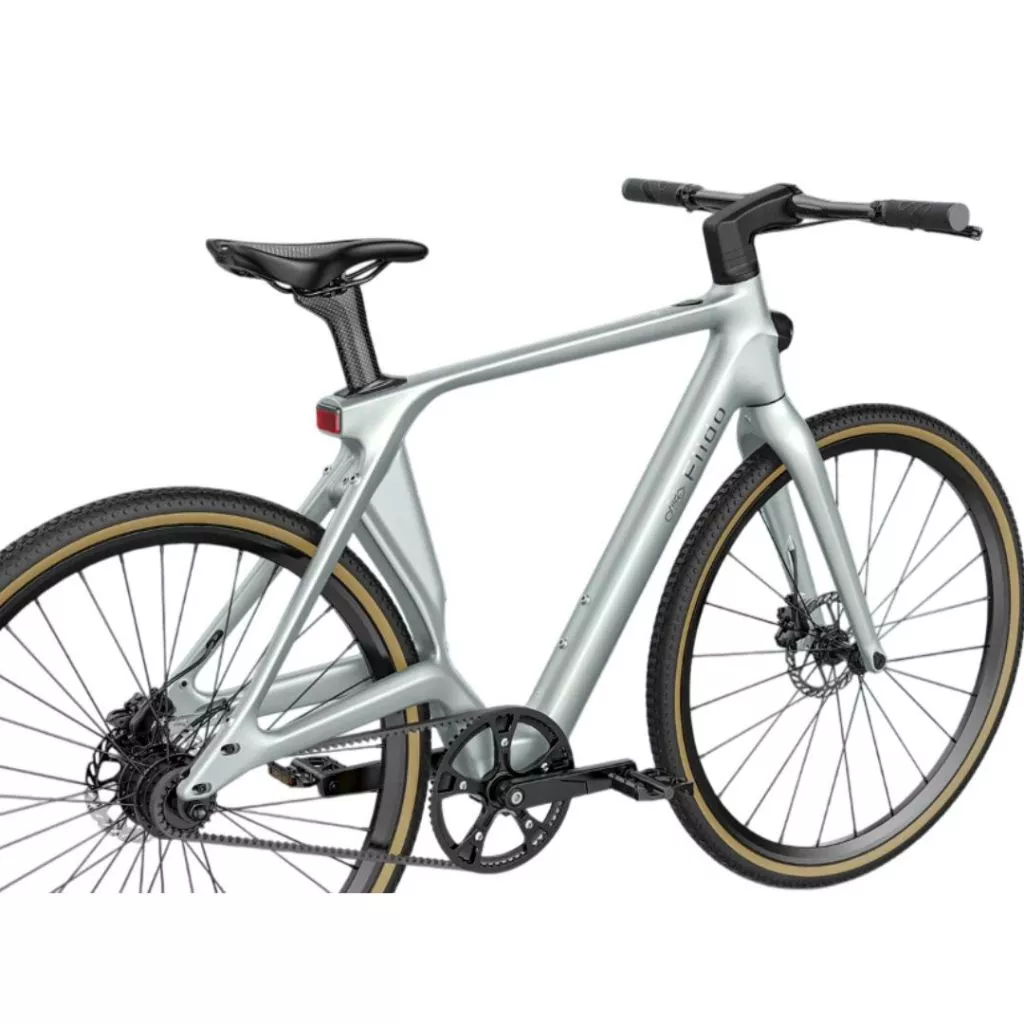

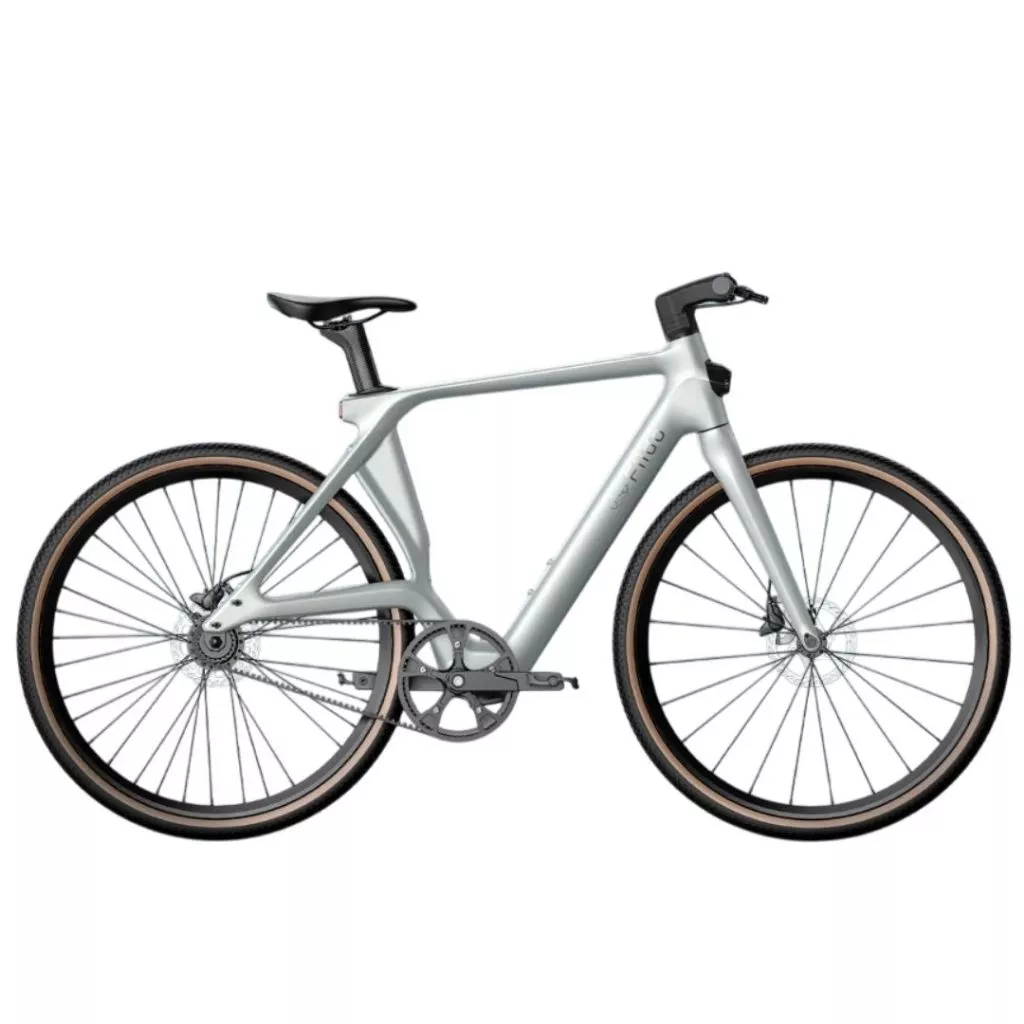

FIIDO AIR CARBON FIBER E-BIKE – SILVER M (510)

Specification

Details

Net Weight :30.3 lbs (14 kg)

Payload : 264 lbs (120kg)

Frameset

Frame :700C carbon fiber frame

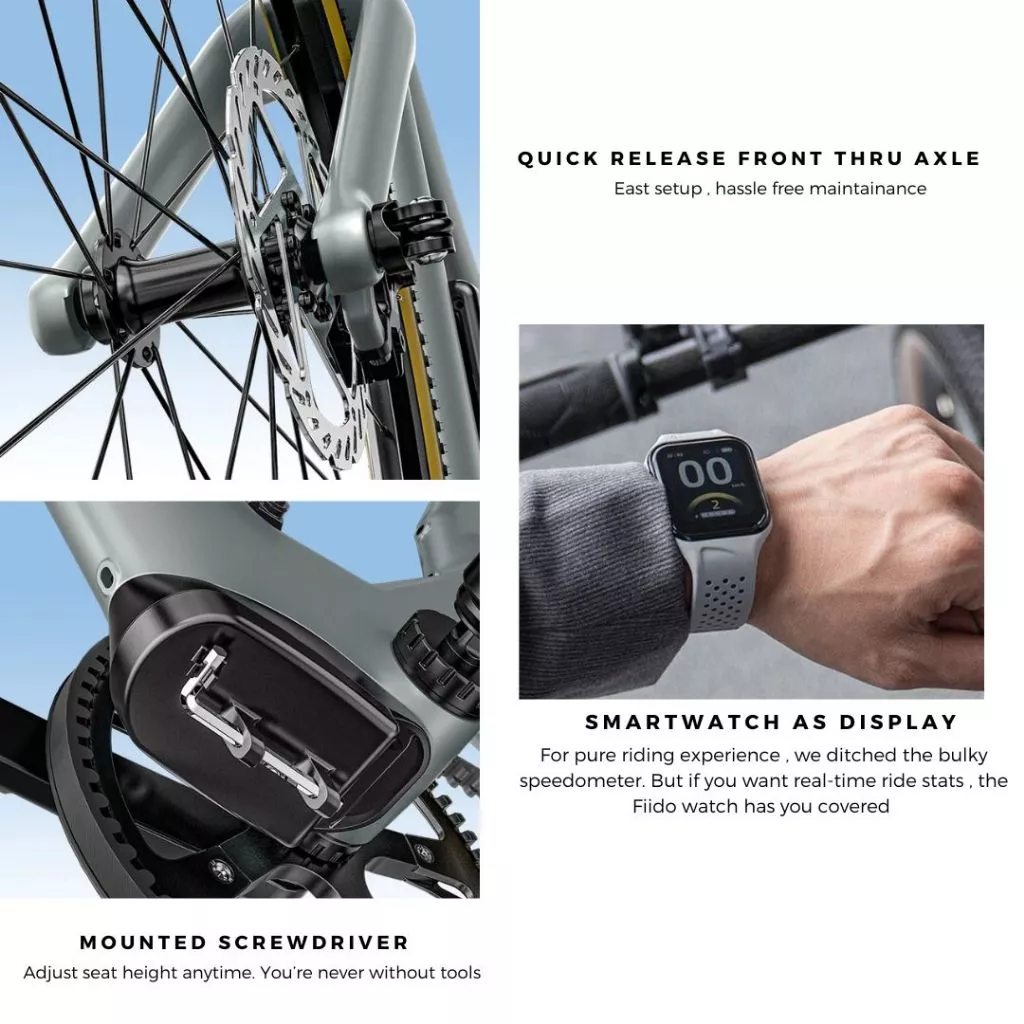

Fork: Carbon fiber through axle fork (axle diameter 15mm) with 100mm opening width

Headset : Aluminum alloy bearing headset

E-system

Drive Unit: Mivice M070 250W

Battery : DMEGC 208.8Wh

Charger : 36V2A

Drivetrain

Chain : GATES CDN Belt

Crank :GATES CDX 60T

Rear Cogs : GATES CDC 22T

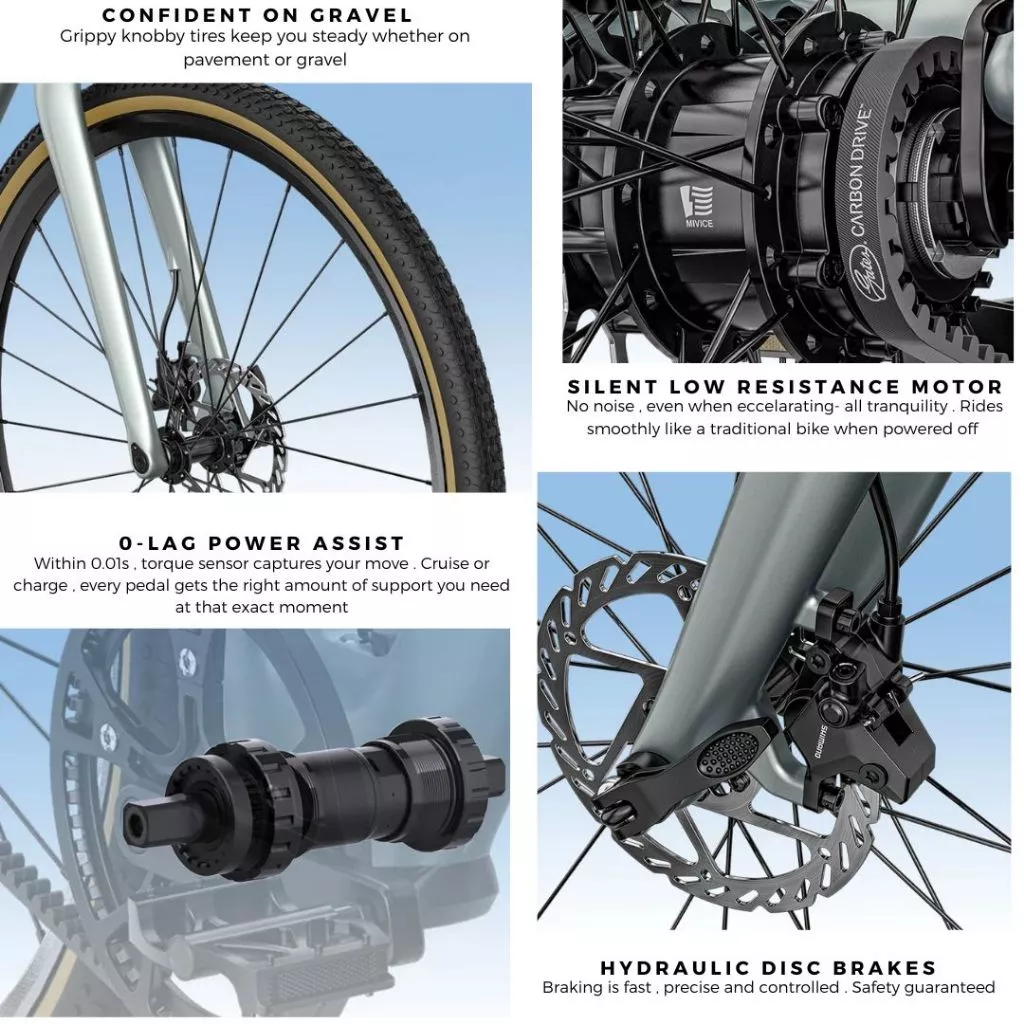

Sensor : Torque Sensor Mivice S200

Brakes

Brakes : Hydraulic Disc Brake

Wheels

Front Hub : Aluminum alloy double-bearing barrel axle hub (barrel axle diameter 15mm)

Rims : Aluminum alloy double-layer rim

Spokes : Stainless steel spokes with brass nipples

Tires : KENDA 27.6*1.57

Components

Handlebar : Carbon fiber (Length: 640mm Maximum diameter: 31.8mm Minimum diameter: 22.2mm)

Stem : Carbon fiber stem

Grips : TPR non-slip handle grip (Length: about 130mm)

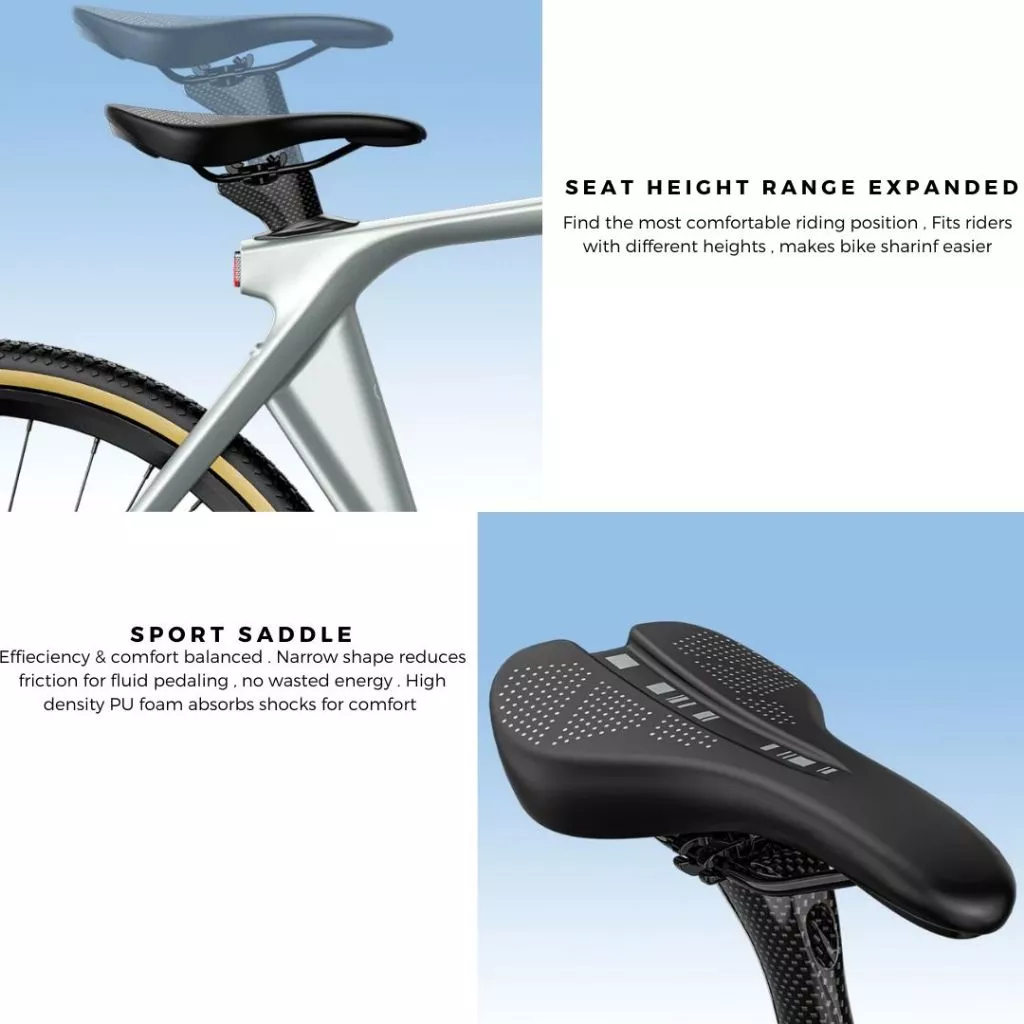

Saddle : VELO vacuum full-fit saddle

Seatpost

Carbon fiber aero seatpost (Length: M-355mm; L-385mm; XL-415mm)

*Specifications are subject to change without prior notice.

*Fiido Air Carbon Fiber 85% assembled
